Temperature range: -60℃ … +200℃
Temperature stability: ±0.1℃ ~ ±0.5℃
Cooling capacity: 0.5 kW … 15 kW
Heating power: 1.5 kW … 15 kW
Pump flow rate (max): 15 … 110 L/min
Pump pressure (max): 0.5 … 2.5 bar

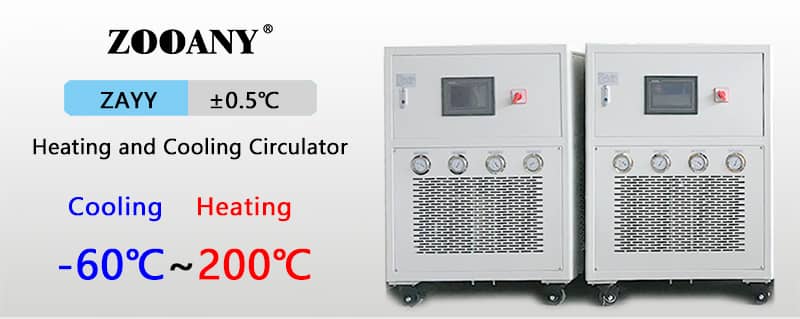

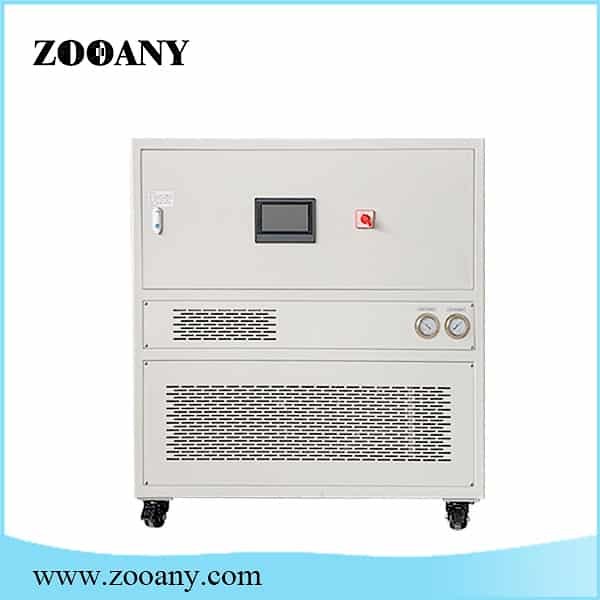

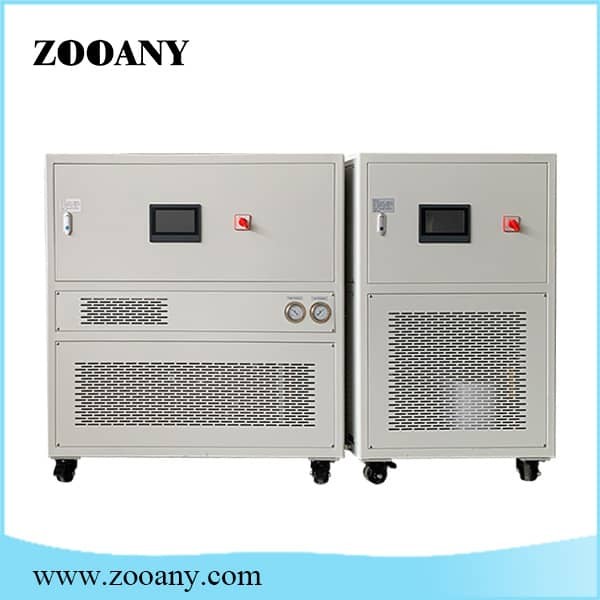

-60℃ to 200℃ High Low Temperature Circulator is a compact, all-in-one recirculating chiller and heater designed for precise external temperature control. It seamlessly combines a powerful refrigeration system and an electric heater, covering a wide operating range from -60℃ (ultra‑low) to +200℃ without the need for separate cooling or heating units. This circulator is ideal for laboratory, pilot plant, and industrial applications that demand reliable temperature cycling, fast ramping, and high stability.
Ultra‑Wide Temperature Range – Operates from -60℃ to +200℃, suitable for cryogenic processes as well as high‑temperature reactions.
Integrated Heating & Cooling – No external chiller or bath required; one unit handles both sub‑ambient and elevated temperatures.
High Temperature Stability – Advanced PID control delivers stability up to ±0.05℃ to ±0.1℃, ensuring reproducible experimental conditions.
Fast Ramp Rates – Optimized compressor and heater allow rapid heat‑up and cool‑down, saving valuable process time.
Powerful Circulation Pump – Provides adjustable flow and pressure for closed‑loop external circulation to jacketed reactors, bioreactors, rotary evaporators, and more.
User‑Friendly Interface – Equipped with a 5‑inch touchscreen or keypad, programmable multi‑step temperature profiles (ramp/soak), and real‑time data display.
Comprehensive Safety – Includes over‑temperature protection, low‑liquid level alarm, auto‑diagnostics, and pressure relief valve.
Communication Options – RS485 / Modbus RTU, USB, or Ethernet available for integration with control systems and data logging.
Model | ZAYY-60-20 | ZAYY-60-30 | ZAYY-60-50 | ZAYY-60-100 | ZAYY-60-150 | ZAYY-60-200 | |
Temperature Range | -60℃～200℃ | ||||||
Control System | PID Adaptive Control Algorithm, PLC Programmable Controller | ||||||
Temperature Control Mode Selection | Material Temperature Control and Equipment Outlet Temperature Control Modes Can Be Freely Selected | ||||||
Program Editing | PLC Control Allows Programming of 5 Programs, Each Program Can Be Composed of 40 Steps | ||||||
Communication Protocol | MODBUS RTU Protocol RS485 Interface | ||||||
External Temperature Feedback | PT100, 4–20mA, or Communication-Based Setpoint (PT100 by default) | ||||||
Temperature Feedback | Three-Point Temperature Measurement: Inlet Temperature of the Heat Transfer Medium, Outlet Temperature, and Reactor Material Temperature (External Temperature Sensor) | ||||||
Temperature Control Accuracy of the Heat Transfer Fluid | ±0.5℃ | ||||||
Material Temperature Control Accuracy | ±1℃ | ||||||
Heating power kW | 2.5 | 3.5 | 5.5 | 7.5 | 10 | 15 | |
Cooling Capacity | 200℃ | 2.5 | 3.5 | 5.5 | 7.5 | 10 | 15 |
100℃ | 2.5 | 3.5 | 5.5 | 7.5 | 10 | 15 | |
20℃ | 2.5 | 3.5 | 5.5 | 7.5 | 10 | 15 | |
-20℃ | 2 | 3 | 4.8 | 6 | 8.2 | 12 | |
-40℃ | 0.95 | 1.45 | 2.3 | 3.1 | 4.8 | 7.8 | |
-55℃ | 0.25 | 0.5 | 0.75 | 0.9 | 1.5 | 2.8 | |
Circulating pump flow pressure max | 20 L/min | 35 L/min | 35 L/min | 50 L/min | 60 L/min | 110 L/min | |
Compressor | Compressors from brands such as Emerson Copeland, Tecumseh, and Doosan | ||||||
Expansion valve | Danfoss/Emerson thermostatic expansion valve + Emerson electronic expansion valve | ||||||
Evaporator | Plate heat exchanger | ||||||
Operation panel | PLC-controlled 7-inch color touch screen, with temperature curve display and recording | ||||||
Safety protection | Features self-diagnosis capability; compressor overload protection; high-pressure pressure switch, overload relay, thermal protection device, and other multiple safety protection functions. | ||||||
Closed-loop circulation | The entire system is fully enclosed. At high temperatures, it produces no oil mist; at low temperatures, it does not absorb moisture from the air. During operation, the system’s pressure does not rise due to high temperatures, and at low temperatures, the heat transfer medium is automatically replenished. | ||||||
Refrigerant | R-404A/R23 mixed refrigerant | ||||||
Power supply | 380V 50HZ / 460V 60HZ | ||||||

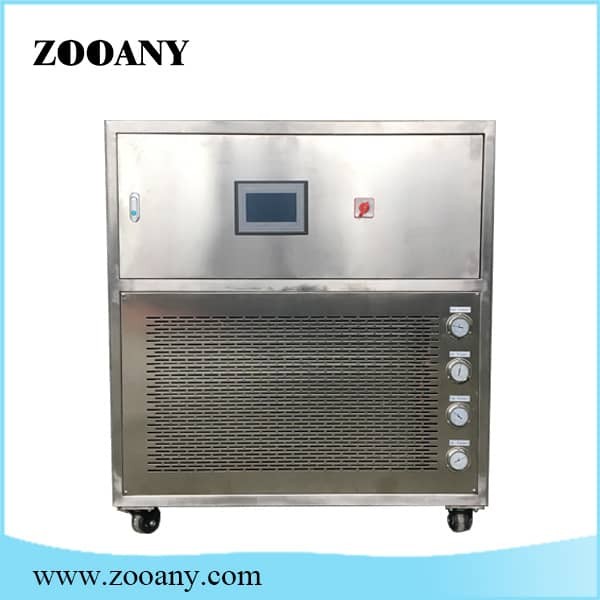

Enclosure material | Cold-rolled steel with plastic coating or SUS304 enclosure | ||||||
Optional | Explosion-proof ExdIIBT4/ ExdIICT4 | ||||||
Chemical & Pharmaceutical – Temperature control of jacketed glass/stainless steel reactors, crystallization, and small‑scale synthesis.
Biotechnology – Bioreactor, fermenter, and freeze‑thaw process control.
Material Testing – Thermal cycling, climatic simulation, and accelerated aging tests.
Battery & Energy – Battery pack charge/discharge thermal management, electrolyte testing.
Semiconductor – Cooling of wafer processing tools, chuck temperature control.
Analytical Labs – Rotary evaporators, viscometers, calorimeters, spectrophotometers.
Freeze‑Drying – Pre‑cooling and shelf temperature control in lab‑scale lyophilizers.
All‑in‑one solution – Eliminates the need for a separate chiller and heater, reducing footprint, installation cost, and maintenance.
Ultra‑low capability down to -60℃ – Ideal for processes that require deep cryogenic conditions, not just -40℃.
Seamless ramping – Smooth transition from cooling to heating without manual intervention or fluid changeover.
Reliable for 24/7 operation – Built with industrial‑grade components, including hermetic or semi‑hermetic compressors and corrosion‑resistant stainless steel bath.
Easy integration – Standard communication protocols allow connection to PC, PLC, or building management systems.

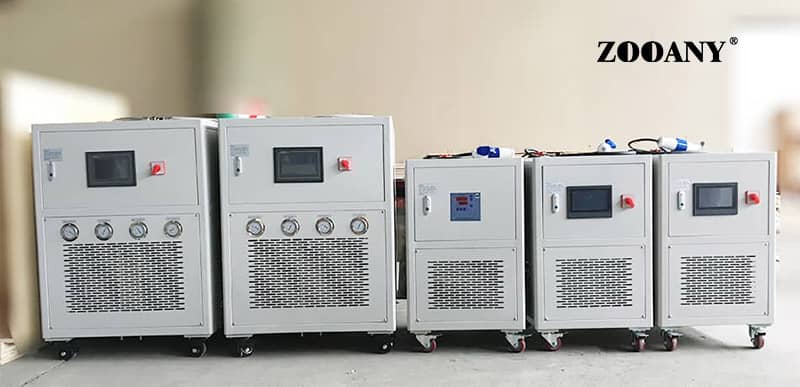

We offer standard models with cooling capacities from 0.5 kW to 15 kW at -60℃, as well as custom solutions for:
Explosion‑proof environments (Ex d / Ex nA)
Special voltages (e.g., 110V/60Hz, 460V/60Hz)
Extended pump pressure or flow
Remote control via software
Non‑standard temperature ranges or bath sizes
Contact our technical team for selection assistance, a quotation, or to discuss your specific temperature control requirements.
