What are laboratory furniture and accessories？

Laboratory furniture is including laboratory bench, fume hood, central table, side table, reagent cabinet, changing cabinet, medicine cabinet, laboratory bench, sky platform, protective cover, etc. According to the material classification, it includes all steel, stainless steel, PP and other types. The countertop can use physical and chemical boards such as Qiansi board plate and VIA, as well as ceramic plate or epoxy resin board to achieve acid resistance, alkali resistance, wear resistance and other characteristics.

Laboratory Components: faucet, PP sink, remote control water valve, remote control air valve, gas cock, drip rack, eye washer, emergency shower device.

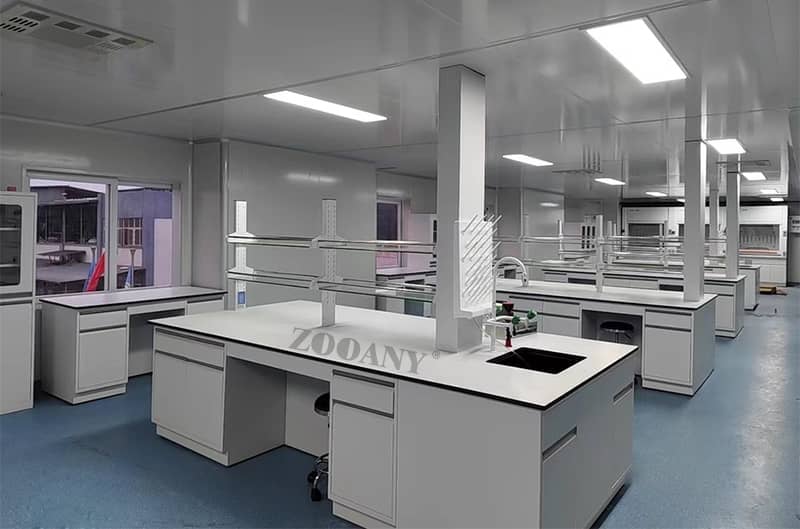

Laboratory bench

The laboratory bench is one of the essential laboratory basic supporting equipment for laboratories in various industries, and it has a combination structure style with reasonable design and beautiful appearance. Easy and convenient installation; Water supply and drainage system, electronic control system, gas distribution system and exhaust gas output system are optional. Colette steel and wooden test benches are a new generation of environmentally friendly products that are non-toxic, odorless and non-polluting, thus ensuring the safety and health of laboratory operators.

Bench features:

1. Type: C-Frame/H-Frame/ Steel/ Wood;

2. Steel bracket: made of 40*60*1.8mm high-quality square steel, the surface is pickled, phosphated, uniformly gray and white epoxy sprayed, chemical anti-rust treatment, acid and alkali corrosion resistance, good load-bearing performance, and long service life.

3. Wooden cabinet body: E1 grade 16mm thick double-sided gray high-quality environmentally friendly melamine board; All visible surfaces are treated with high-quality PVC edge banding and waterproofing, and all boards are disassembled and assembled three-in-one connections, with stable structure, good load-bearing performance and easy to dismantle, which is conducive to use in the special working environment of the laboratory.

Drawer: The drawer panel is made of the same material as the door panel, the bottom panel is made of E1 grade 4mm thick high-quality MDF, and other materials are the same as the cabinet.

4. All-steel cabinet: using 1.2mm high-quality cold-rolled steel plate, the surface is pickled, phosphating, and gray and white epoxy powder is sprayed with high-precision electrostatic spraying, which is not easy to be affected by the external environment and deformed; It has sufficient compressive strength to cope with the influence of external forces, good mechanical properties, corrosion resistance, durability, and beautiful appearance, which meets the requirements of use in special laboratory environments.

◆Performance parameters:

1. External specifications: central test bench L*1500*850; side test bench L*750*850;

2. Stainless steel/nylon adjustable feet, 3-5cm adjustable range. It has a primary shock absorption function.



Laboratory bench:

1. Physical/chemical solid core physical and chemical board;

2. Qiansiban;

3. Epoxy resin countertop;

4. Ceramic countertop;

5. Marble countertop;

The above countertops are reasonably selected according to the usage.



handle: one-piece integrated aluminum alloy invisible handle; Curved stainless steel laboratory handle



Slide rail: Adopt national well-known brand (Dongtai DTC) three-section silent slide rail, light and noiseless to pull, high strength, good toughness, long-term load without deformation, with automatic homing function.



Hinge: Adopt 115/175 degree national famous brand (Dongtai DTC) fully open hinge, anti-corrosion, no noise, no rebound, high strength, good toughness, long service life.



Adjustable feet: special injection molding adjustable feet, load-bearing, moisture-proof, anti-slip, antibacterial, corrosion-resistant, can adjust the height of the cabinet appropriately according to the indoor floor; The appearance is beautiful and the design is humanized



Water Faucets:

It adopts single, double or triple white faucets, the water outlet is copper pointed nozzle type, high head, single port 360° rotation, easy to use for multi-purpose, detachable cleaning blockage, and has a pressure relief effect. The pipe body is made of brass alloy, and the surface is sprayed with baking paint, which is rust-proof and corrosion-resistant. The spout is removable and has a molded thread inside, which can be easily connected to special water pipes such as circulation.



Single-outlet gooseneck faucet

Double-outlet water faucet

Triple-outlet gooseneck faucet

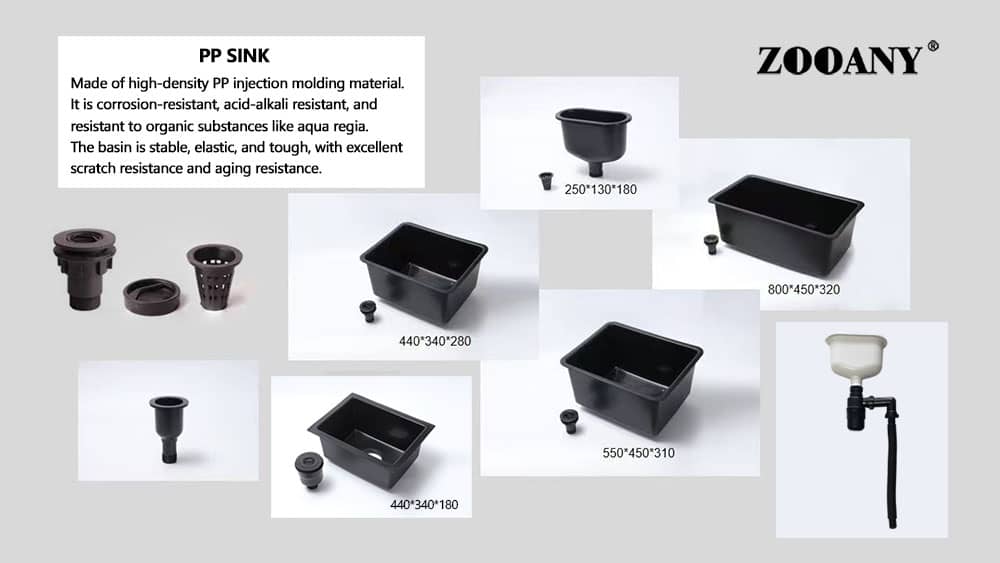

PP Sink:

It is made of PP material, mold forming, antibacterial, easy to clean, corrosion resistant, and installed under the countertop, and is conducive to the natural return of residual water on the countertop, which is beautiful and practical; The specifications range from small to large, and can be selected according to actual needs.



Drip Rack:

It is made of black PP rod + solid core physical and chemical board, which is anti-chemical corrosion, antibacterial, easy to clean, moisture-resistant, and equipped with an automatic return device for clean water, with a diversion hole, connected to the sink, which is convenient for the drainage of residual water and is conducive to the natural drying of utensils. The overall beauty and practicality.

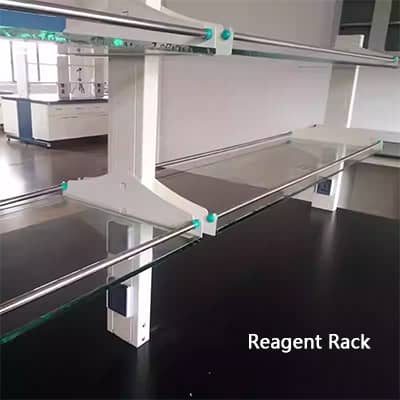

Reagent Rack:

All steel columns, 8mm tempered glass slams, surrounding car side treatment, smooth, not hurting hands, with glass support plate and steel plate bending hook, can freely adjust the height according to comfort requirements; The edge is equipped with a Ø12mm stainless steel tube to prevent the reagent bottle from falling. The appearance design is beautiful, generous and practical.



Eyewash:

Double-head eyewash, mold forming, the center spacing of the two nozzles is about 108mm, the slope is about 45 degrees, the pressure can be dispensed at the same time, the water spray is mist diffusion and moderate force, quickly and thoroughly clean the eyeballs. Improve the safety of personnel used in chemical experiments.



Fume hood - Fume hood function:

In recent years, considering the improvement of the experimental environment, the experiments carried out on the test bench have gradually been transferred to the fume hood, the most important function of the fume hood is the exhaust gas emission function, in the chemical laboratory, the experimental operation produces a variety of harmful gases, odors, moisture and flammable, explosive and corrosive substances, in order to protect the safety of users and prevent the spread of pollutants in the experiment to the laboratory.



Working principle:

Water, electricity, gas, and exhaust air are integrated with multi-functional power sockets, which is convenient for the use of other electrical equipment in the laboratory process. The waterway adopts a quick-opening valve, which is convenient for water use during the experiment. The front baffle is a glass door that can be moved up and down, and the top is a low-speed exhaust fan, which can smoothly discharge harmful odorous gases during the experiment. The bottom of the working face is equipped with a PP integrated molding sink, which can drain the disinfectant and experimental residues from a drainage tank through washing, protecting the safety and reliability of the experimental environment.



1. Conventional fume hood

When the height of the operating window is 300mm high, the upper air supply outlet and the lower part are supplemented with indoor air at the same time to ensure that the wind whistle and glass sway will not be caused by negative pressure during operation.



2. Supplementary air duct

Strict requirements of laboratory temperature and humidity, newly developed outdoor supplementary air ventilation hood. During operation, the supplementary air is connected to the outside through the pipe to supplement the air, which does not affect the indoor temperature difference.



3. Ordinary air volume system

It is necessary to manually adjust the damper that fixes the blades, adjust the exhaust air volume of the fume hood, and reach the desired surface wind speed when the valve is adjusted to a certain angle. Variable air volume control is to change the air volume to a given surface air speed through the sensor of the adjustment valve, of course, the standard type has low cost and high variable air volume cost, which is suitable for occasions that require high accuracy.

Fume hoods are classified according to their use functions: standard, tabletop, and floor-to-ceiling



Fume hoods are classified according to materials: all-steel type, stainless steel type, PP type

ZOOANY is China professional lab solution provide, manufacture & factory, committed to providing the best solutions and products for global customers. We can provide you with Laboratory design, about laboratory fume hood, laboratory furniture, purification system, ventilation system, air supply system, gas supply system, laboratory intelligent control system, laboratory instruments. Our products are usual used in factories, hospitals, universities, scientific research institutes, inspection and quarantine stations. Regardless of the field you work in, we keep striving for the same goal: to provide you with the most suitable solutions & equipment, to make your research more accurate & efficient.
