20L Double-Jacketed Glass Reactor

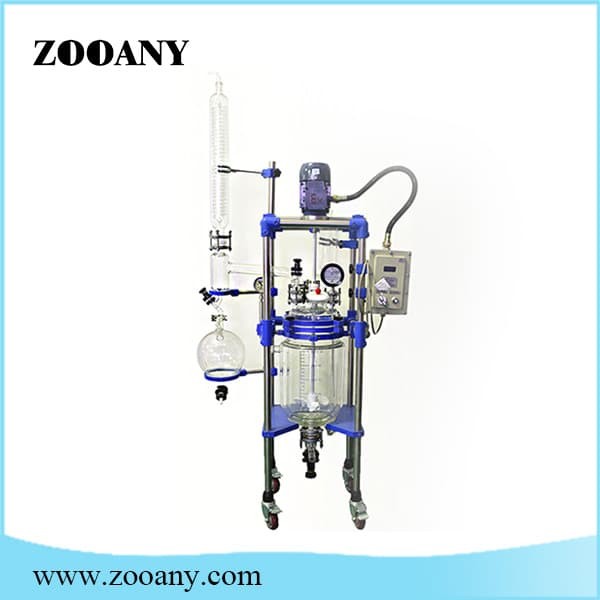

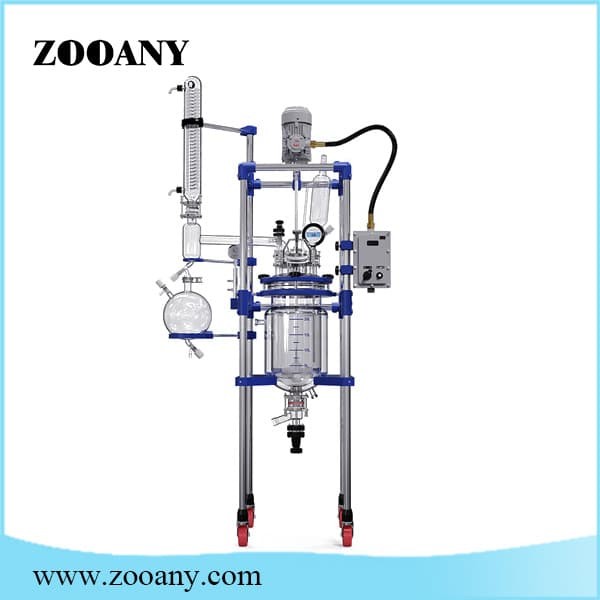

PL-20L Double-Jacketed Glass Reactor

In the industrialization of pharmaceuticals, chemical engineering, biosynthesis, and new materials production, scaling up equipment capacity often brings with it risks and challenges associated with process scale-up. The 20L double-jacketed glass reactor, serving as a “golden bridge” between laboratory-scale trials and industrial production, is becoming an indispensable core piece of equipment in pilot‑scale facilities and batch‑production operations, thanks to its increased processing throughput, stable temperature‑control system, and highly realistic industrial‑scale design.

20L Specification: Why Is It the Ideal Starting Point for Pilot-Scale Scale-Up?

As R&D projects transition from small-scale experiments (5 L–10 L) to scaled-up production, the 20 L double‑jacketed glass reactor perfectly fills the gap in “scale‑up validation.” Compared with 10 L double‑jacketed glass reactor, the doubled volume of the 20 L unit significantly increases single‑batch throughput, meeting pilot‑scale requirements for materials ranging from kilograms to tens of kilograms. It not only retains the intuitive visual advantages of glass equipment but also incorporates industrial‑grade adaptations in stirring torque, sealing and pressure resistance, and heat‑exchange efficiency, providing precise process parameters for the subsequent commissioning of hundred‑liter stainless‑steel reactors.

Core Advantages: Dual Assurance of Efficient Heat Transfer and Structural Stability

20L double-layer glass reactors are typically manufactured using thickened 3.3 high-borosilicate glass. Compared with smaller‑size equipment, their wall thickness and flange structure have been specially reinforced to withstand the mechanical stresses associated with larger batch volumes.



Enhanced heat transfer capability: The jacket volume of the reactor vessel has been increased, allowing for the introduction of high‑temperature heat transfer oil (up to 250°C) or low‑temperature cooling fluid (down to -80°C). Thanks to an optimized jacket flow‑guiding design, the circulation of hot and cold media within the jacket is more uniform, eliminating the “localized overheating” that can occur due to the increased volume and ensuring uniform temperature distribution throughout the reactor contents.



High-vacuum sealing performance: The 20L specification has even stricter vacuum requirements. High-quality equipment employs dual mechanical seals or magnetic coupling sealing technology, capable of maintaining a vacuum level above -0.098 MPa for extended periods, effectively meeting the demands of long-duration, high-load vacuum distillation or anhydrous, anaerobic reactions during pilot-scale operations, thereby preventing material waste caused by seal failure.

Industrialized Structural Design: Addressing Complex Process Challenges

Compared to small-scale equipment, the 20L double-jacketed glass reactor places greater emphasis on long-term operational stability and ease of use in its structural design:

High-torque mixing system: Equipped with a high-power explosion-proof variable-frequency motor, delivering significantly greater mixing torque than smaller‑sized equipment. The agitator features a combined paddle‑and‑anchor design, enabling high‑speed mixing of low‑viscosity liquids while also ensuring powerful bottom‑to‑top circulation with no dead zones when handling high‑viscosity materials or solid–liquid suspension systems.



Multi‑functional expansion interfaces: The vessel head is fitted with 5–8 standard ground‑glass ports. In addition to meeting basic requirements such as constant‑pressure drop feeding, temperature monitoring, and condensation reflux, it can be further expanded with auxiliary devices like online pH monitoring, turbidity detection, or solid‑feeding hoppers, satisfying the complex online monitoring and control needs of pilot‑scale processes.

Core application scenarios:

From process optimization to small-batch production, the 20L double-jacketed glass reactor plays an irreplaceable role in the following scenarios:



Pharmaceutical industry: pilot-scale scale-up of active pharmaceutical ingredients (APIs)

During the drug submission and clinical trial sample preparation stages, a 20L-scale reactor can be used to validate the synthesis process of critical intermediates, ensuring that the impurity profile and yield remain compliant with quality standards even after scale-up.



Fine Chemicals: Preparation of Catalysts and Additives

It is suitable for exothermic reactions that require strict temperature control, such as polymerization and emulsification. Its excellent heat dissipation efficiency effectively mitigates the risks associated with reaction heat, ensuring operational safety.



New Material Synthesis: Organosilicon Compounds and Specialty Resins

When handling high-viscosity, easily crystallizing special materials, the 20L reactor, with its powerful stirring capability and jacketed temperature control, can simulate industrial-scale production conditions, providing reliable data for mass production.

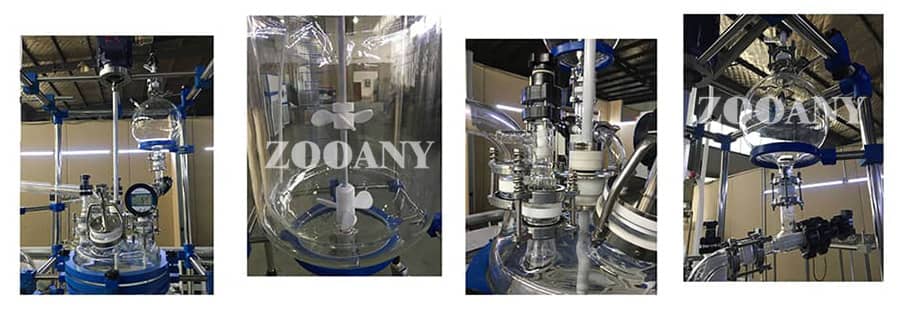

Detail images of each component of the double-layer glass reactor

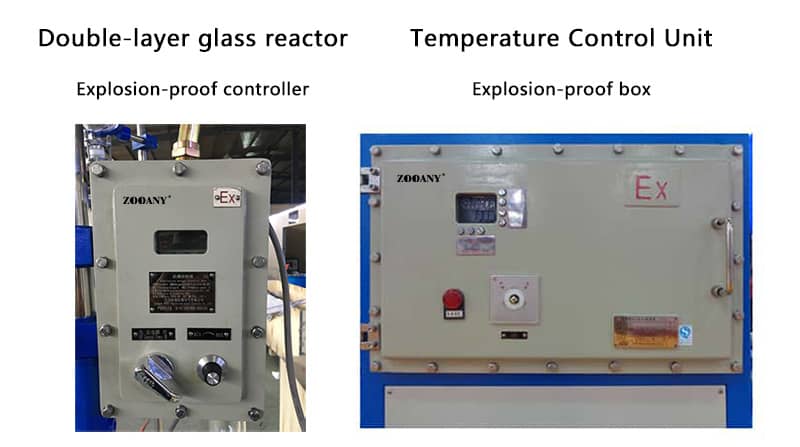

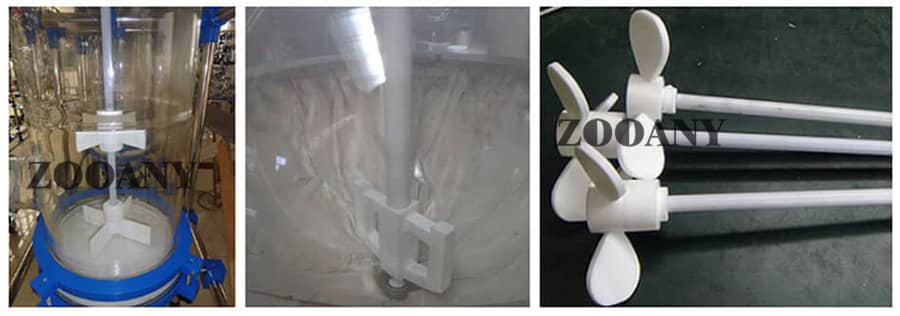

Including explosion-proof motors, various types of agitators, variable-frequency controllers, PTFE discharge valves, thermometers, serpentine condensers, and more

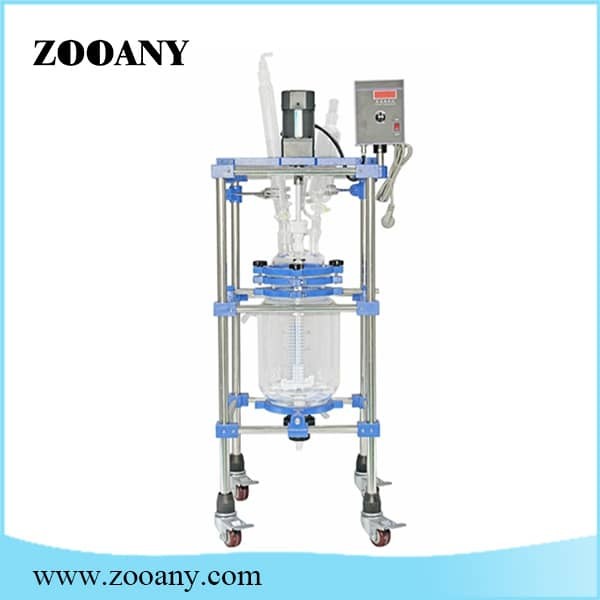

Parameter Table for 10L and 20L Double-Jacketed Glass Reactors

Combined use of double‑walled glass reactors, high/low temperature integrated units, and low‑temperature circulators

Key considerations when selecting: the volume and characteristics of the solution being processed

When choosing a 20L double-jacketed glass reactor, it is recommended to focus on the following industrialization-related criteria:

Seal Durability: Inquire with the supplier about the material of the seals (it is recommended to use perfluoroelastomer or PTFE composite materials), and request vacuum pressure-holding test data to ensure the equipment can sustain continuous operation for more than 48 hours.

Electrical Control Safety: Pilot-scale environments often involve flammable and explosive solvents; motors and electrical control cabinets must meet Ex explosion-proof standards and be equipped with variable-frequency speed control and automatic overload trip protection.

Discharge Convenience: The design of the bottom discharge valve is critical. It is recommended to select a Teflon discharge valve with no dead corners to prevent material residue and cross-contamination, ensuring smooth discharge and ease of cleaning and sterilization.



Daily Maintenance and Precautions for Glass Reactors

Since 20L equipment typically handles materials of high value, proper operation and maintenance are essential to ensuring process success:

Temperature Differential Control: When heating or cooling the jacket, always follow the “stepwise temperature rise/fall” principle, and ensure the medium temperature difference does not exceed 60°C to prevent thermal stress damage to the glass reactor vessel.

Seal Inspection: Before each run, check the lubrication condition of the agitator shaft seal; for mechanical seals, ensure that the coolant circulation is functioning properly.

Cleaning Guidelines: After the reaction is complete, clean the reactor immediately. Never allow strongly alkaline materials to remain inside the vessel, as prolonged exposure can corrode the glass surface, compromising its smoothness and service life.



Conclusion

The 20L double-layer glass reactor is not only an experimental device with increased capacity; it also serves as a technological safeguard, enabling processes to transition from “feasibility” to “stable mass production.” With its moderate size, it embodies the core principles of industrial-scale manufacturing, ensuring R&D flexibility while providing a process validation platform that closely mimics large-scale production conditions. Choosing a well‑configured, reliably sealed, and safely operated 20L reactor system will pave the way for your project’s journey from the laboratory to the market.



If you are looking for a glass reactor solution suitable for pilot-scale scale-up, please contact us to obtain detailed technical specifications and customized solutions, helping you efficiently bridge the gap between R&D and production.
