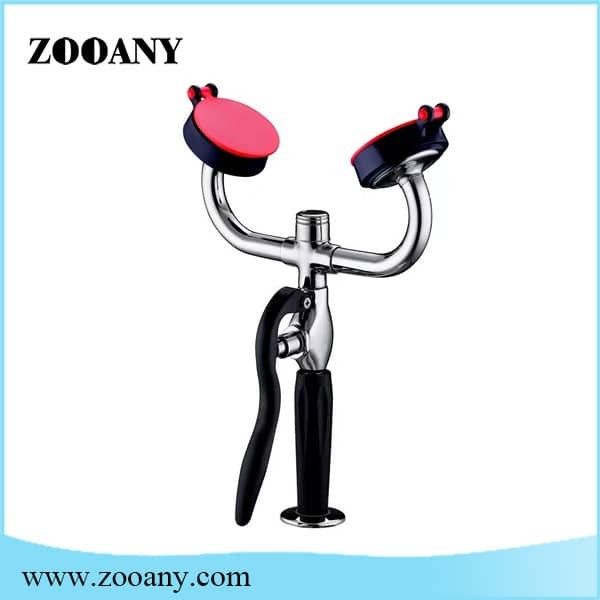

Deck-Mounted Double Eyewash Station ZAEW1605

Deck-Mounted Double Eyewash Station For Laboratory

Desktop dual mouth eye wash is an emergency eye washing device designed specifically for laboratories, industrial workshops, and research sites. It is mainly used to provide instant and efficient synchronized eye washing in case of sudden accidents such as chemical splashes into the eyes or face.

This device is usually installed on a laboratory bench or workbench, and can be used immediately by connecting a water supply pipeline. It has an emergency response capability that can quickly start within 3 seconds. Its core structure includes two independent nozzles that can provide stable and gentle water flow for both eyes simultaneously, effectively removing harmful substances and reducing the risk of chemical burns.

Made of all copper material, it has good corrosion resistance and durability. Some products are also equipped with safety designs such as constant pressure and current, automatic opening of dust covers, and contactless induction start to improve safety and hygiene levels.

The desktop dual mouth eye wash complies with international safety standards such as ANSI Z358.1-2014 and is an important component of modern laboratory and personal protective systems.

Parameters of double eyewash station

Type: ZAEW1605

Body: solid brass

Coating: High gloss epoxy powder,resistant to chemicals,UV fading and heat

spray head: soft rubber,softend water spray for eye protection

Dust cap: PP, removed automatically when eye wash is operated

switch: Automatic trigger locking for easy hand-free use

Valve: None-return valve,shut off automatically

Hose: length 1.5m,PVC with stainless steel wire braided

Max:working pressure: 7 Bar

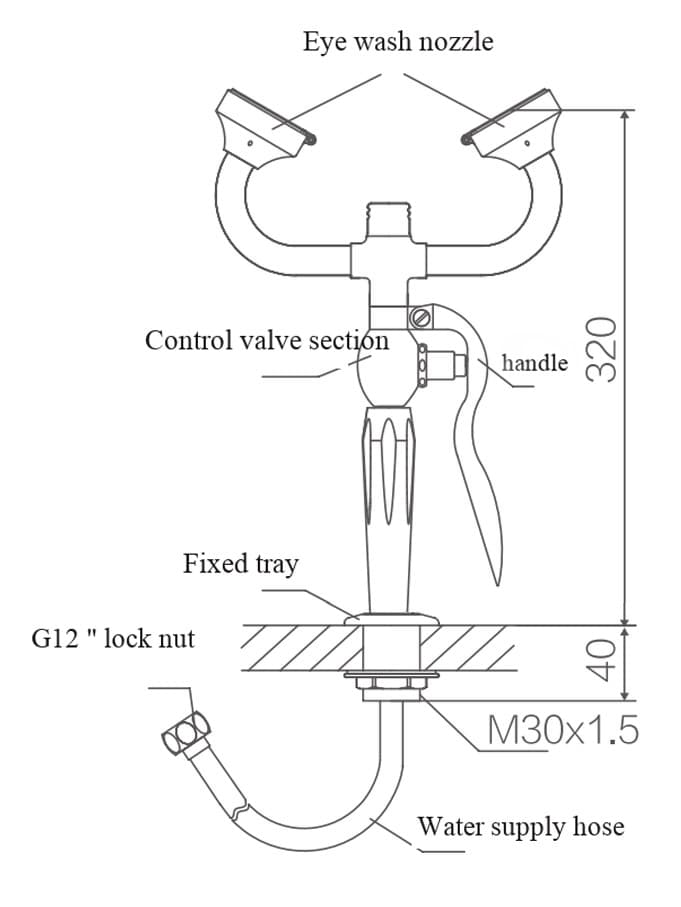

Drawing:

Technical Specifications

Installation Instructions of double eyewash station

Its installation method is the same as that of a single-head eyewash.

1. Install and fix the fixed tray onto the tabletop.



2. Thread the tapered female end of the water supply hose (with an internal rubber pad) through the lower part of the fixed tray and connect it to the G1/2"joint of the water control valve.



3. Connect the G1/2"locking female end (with internal rubber gasket) of the water supply hose to the water supply pipeline.

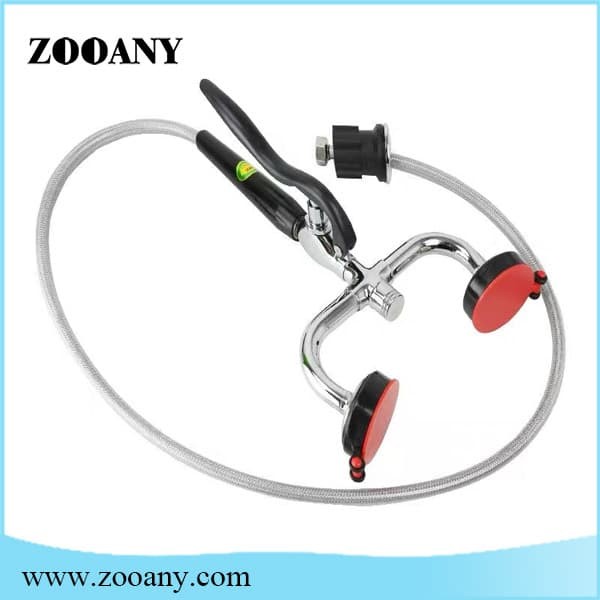

Counting accessories:

After opening the box, please count the number of accessories according to the following list and check for any damage during transportation. If there are any problems or insufficient quantities, please contact our local distributor or company immediately. You will receive a satisfactory response.
