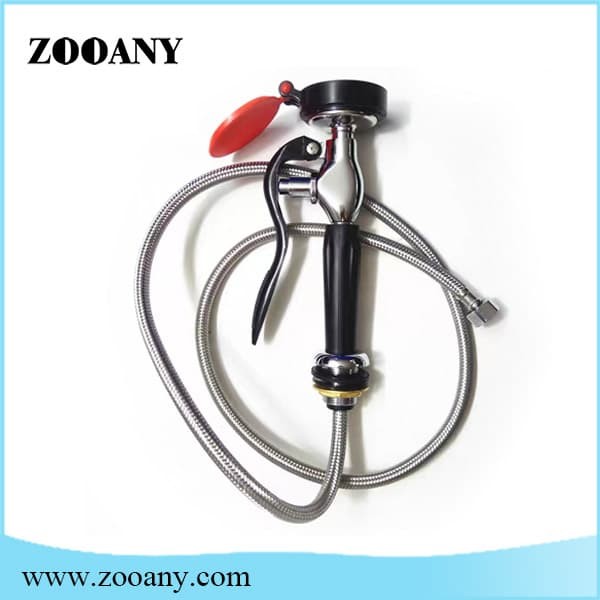

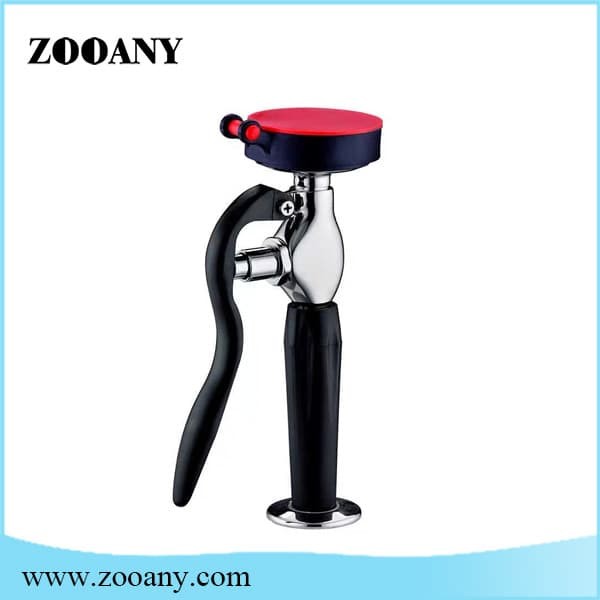

ZAEW1604 Bench-mounted Single-Head Eyewash Station

ZAEW1604 Bench-mounted Single-Head Eyewash Station

ZOOANY China eyewash manufacturer&factory
Body: solid brass
Coating: High gloss epoxy powder
Hose: length 1.5m,PVC with stainless steel wire braided
Max:working pressure: 7 Bar

Bench-mounted Single-Head Eyewash Station

The essential equipment for safety and labor protection is an emergency protection facility that is necessary in situations where there is contact with acids, alkalis, organic compounds, and other toxic and corrosive substances. When an accident occurs, the degree of injury can be minimized by quickly flushing.

Type: ZAEW1604

Body: solid brass

Coating: High gloss epoxy powder,resistant to chemicals,UV fading and heat

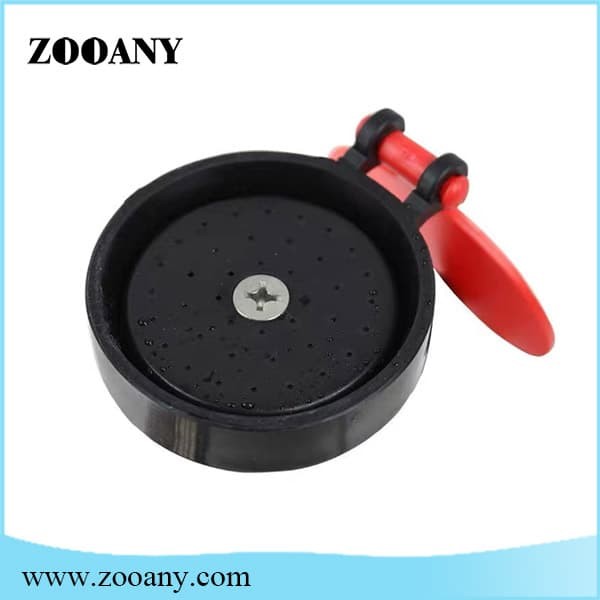

spray head: soft rubber,softend water spray for eye protection

Dust cap: PP, removed automatically when eye wash is operated

switch: Automatic trigger locking for easy hand-free use

Valve: None-return valve,shut off automatically

Hose: length 1.5m,PVC with stainless steel wire braided

Max:working pressure: 7 Bar

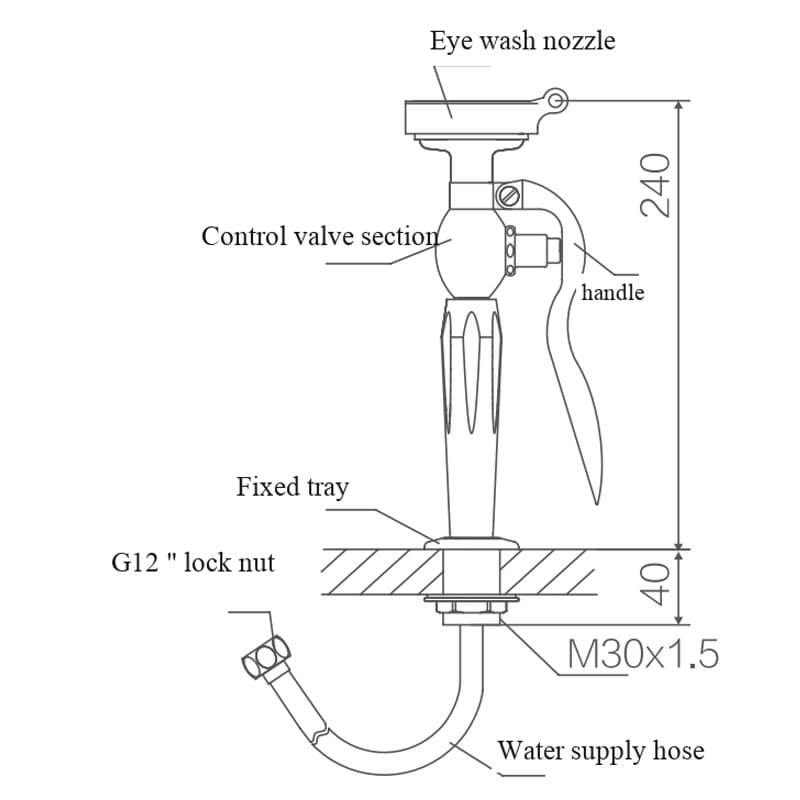

Drawing:

Technical Specifications

Pressure rating MPa			Flow rate L/min	Applicable Conditions
Nominal Pressure	Sealing Pressure	Work Pressure	≥11	Room temperature pure water or water that meets hygiene standards
0.4	0.45	0.2～0.4	≥11

Installation Instructions

1. Install and fix the fixed tray onto the tabletop.

2. Thread the tapered female end of the water supply hose (with an internal rubber pad) through the lower part of the fixed tray and connect it to the G1/2"joint of the water control valve.

3. Connect the G1/2"locking female end (with internal rubber gasket) of the water supply hose to the water supply pipeline.

Counting accessories:

After opening the box, please count the number of accessories according to the following list and check for any damage during transportation. If there are any problems or insufficient quantities, please contact our local distributor or company immediately. You will receive a satisfactory response.
