Wall-mounted Single Outlet Distilled Water Tap

Wall-mounted Single Outlet Distilled Water Tap

Product Code: ZAKA7W / ZAKA7G

Overview

The wall-mounted single outlet distilled water tap is specially engineered for laboratory ultrapure water and distilled water supply systems. Available in two handle variants: green hexagonal knob (ZAKA7W) and grey ergonomic knob (ZAKA7G), it delivers stable, contamination-free water output ideal for analytical labs, research institutions and testing facilities.

Key Features

High-purity Material Construction
 Main body made of corrosion-resistant PP plastic, effectively avoiding metal ion leaching. Guarantees water quality integrity for distilled water, deionized water and ultrapure water applications.
 Precision Flow Control Valve
 Fine-tuning valve structure enables smooth, accurate regulation of water flow. Reliable sealing prevents dripping and leakage for long-term continuous operation.
 Wall-mounted Compact Design
 Horizontal wall installation saves valuable bench workspace. Built-in side barb connector allows convenient attachment to peripheral hoses for auxiliary fluid collection.

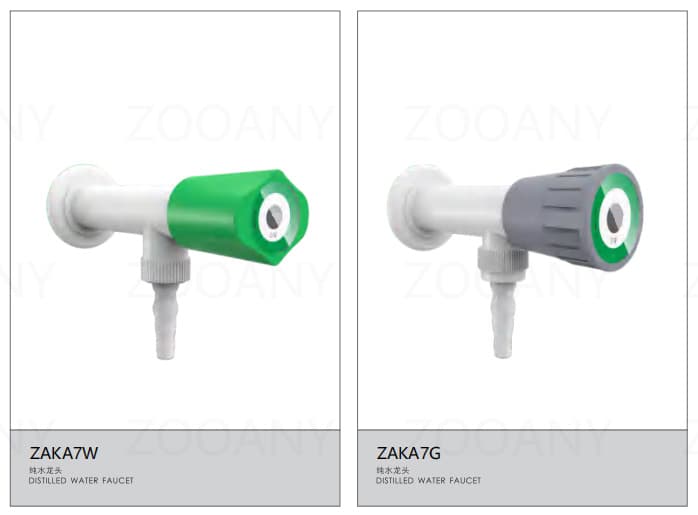

 Two Styling Options Available

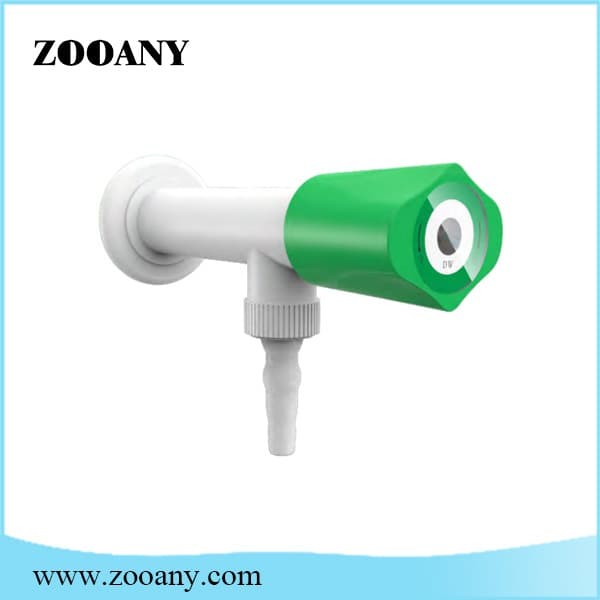

• ZAKA7W: Green hexagonal handwheel, easy to grip and operate

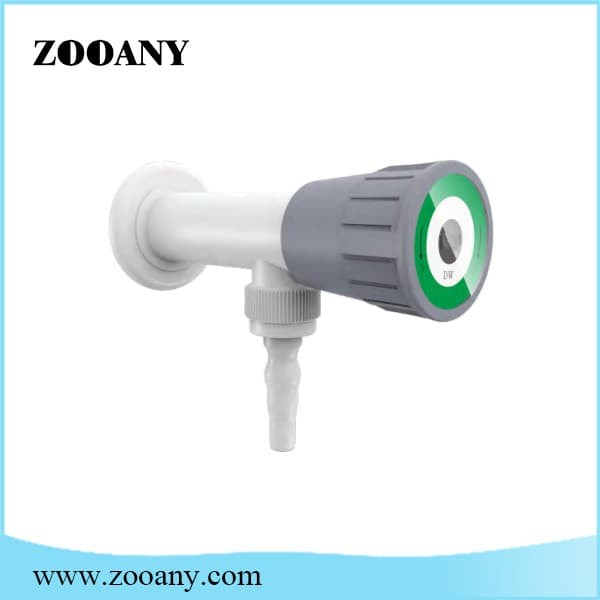

• ZAKA7G: Grey ribbed ergonomic knob, anti-slip for comfortable daily use

Lab-grade Durability
    Resistant to common weak acids, alkalis and laboratory solvents. Low maintenance, long service life under frequent daily usage.


Technical Parameters

Valve body: made of PP material

Water outlet: Made of PP injection molding, integrated molding

Coating: Epoxy resin coating, corrosion-resistant, heat-resistant, and resistant to ultraviolet radiation

Switching valve: using a dedicated pure water valve core that rotates 90 °, with a service life of 500000 switches and a working pressure resistance of 3Bar. The test pressure is 8bar

Switch knob: high-density PP, ergonomic design for comfortable hand feel

Temperature range: 1 ℃ -50 ℃

Recommended pressure: 1 bar to 3 bar

Enduring pressure: 3bar

Inlet interface: G1/2

Typical Applications

• Analytical chemistry laboratories

• Water quality testing laboratories

• Pharmaceutical & biological research labs

• Ultrapure water machine supporting outlet

• Universities and scientific research institutes

Specification Summary

• Mounting: Wall-mounted horizontal installation

• Outlet: Single main water outlet with side hose barb

• Media: Distilled water, deionized water, ultrapure water

• Body Material: Polypropylene (PP)

• Model Selection: ZAKA7W – Green Hexagonal Handle ZAKA7G – Grey Ribbed Handle

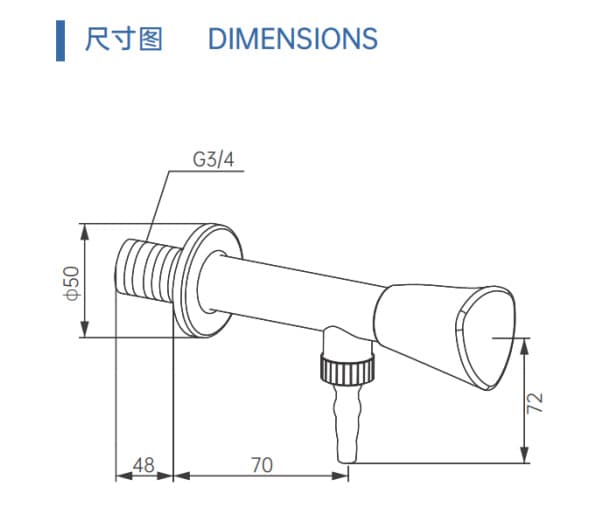

Drawing size:
