ZAKA13-1 Wall-Mounted Single Outlet Laboratory Water Tap

1. Product Overview

Model: ZAKA13-1

Name: Wall-Mounted Single Outlet Laboratory Water Tap

The ZAKA13-1 wall-mounted single outlet tap is custom-developed for all types of laboratories. It applies to university labs, third-party testing institutions, chemical research labs, biological assay rooms, quality inspection labs, hospital clinical laboratories and more. It supports common lab water usage including labware cleaning, pipeline water supply, reagent dilution, and water delivery via connected hoses.

Two color options (white-green and all-grey) are available to match different laboratory decoration styles. Designed for wall installation, it saves bench space and matches pre-buried wall pipelines, serving as a standard water fitting for laboratory construction and renovation.

2. Structure & Appearance

• The product consists of 5 main parts: wall mounting flange base, horizontal inlet pipe, valve body, rotary control knob, and adjustable spout.

• Wall Mount Base: Round flange plate fits tightly against walls for stable installation and reliable sealing to prevent joint leakage.

• Horizontal Inlet Pipe: Integrated bent pipe with seamless construction, featuring high structural strength and crack resistance under water pressure.

• Valve Control Knob: Large anti-slip textured knob. The white version comes with a green knob; the grey version uses a matching grey knob. Grooved surface enables easy operation even with protective lab gloves.

• Barbed Spout: Stepped barb outlet firmly connects silicone tubes, latex tubes and PVC hoses for water persion. The spout can rotate slightly to adjust water direction flexibly.

3. Materials & Core Advantages

• Strong Chemical & Acid-Alkali Resistance

• Constructed with high-quality corrosion-resistant brass substrate coated with anti-corrosion epoxy resin. It resists common acids, alkalis, organic solvents and disinfectants. No rust, peeling or perforation occurs under long-term exposure to lab chemicals.

• Premium Ceramic Cartridge

• Equipped with wear-resistant high-density ceramic cartridge. It delivers smooth rotation for precise flow adjustment. Excellent sealing prevents dripping even after tens of thousands of on-off cycles, avoiding water pooling and reagent contamination in lab areas.

• Easy Sanitization, No Dead Corners

• Smooth streamlined surface without recessed gaps. Users can wipe and disinfect directly with alcohol or sanitizers, complying with lab hygiene standards and resisting limescale and dirt buildup.

• Space-Saving Wall Mount Design

• Wall installation frees up valuable countertop space for lab operations. Ideal for wall-side benches and fume hoods, convenient for both new lab construction and pipeline retrofitting.

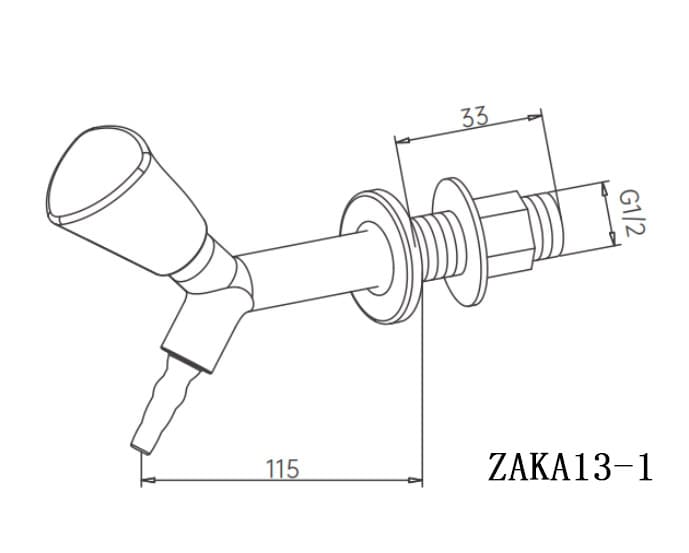

4. Drawing.

5. Key Features

• Independent single-channel water control with adjustable flow, suitable for heavy rinsing and slow dripping for lab applications.

• Barbed outlet compatible with most common lab hoses for tap water or pure water transfer.

• Two color choices support color-coded water piping norms: green generally marks regular tap water, grey for general-purpose pipelines.

• Standard flange base fits mainstream lab pipe connectors for simple installation.

• Tolerates cold and warm domestic water with stable pressure resistance to avoid pipe bursting.

6. Application Scenarios

Physical & chemical analysis labs, university chemistry teaching labs, biomedical labs, food safety testing labs, water quality testing rooms, CDC laboratories, factory quality control workshops, water supply accessories for fume hoods.

7. Installation & Usage Precautions

• Designed for walls with pre-buried inlet pipes. Wrap PTFE tape around threads during installation for enhanced sealing against leakage.

• Do not twist the knob forcefully. Gentle rotation fully opens/closes the valve to extend cartridge service life.

• Regularly wipe the tap surface after use to remove residual chemicals and limescale.

• Drain residual water from pipelines if the tap will remain unused long-term to keep the fitting dry.

8. Conclusion

The ZAKA13-1 wall-mounted single outlet lab tap balances corrosion resistance, practicality, easy installation and neat appearance. With robust build and reliable sealing, it fully meets strict water supply requirements for research, inspection and educational laboratories, acting as an optimal standardized water accessory.
